#include <ConfigEnumInterpolation.hh>

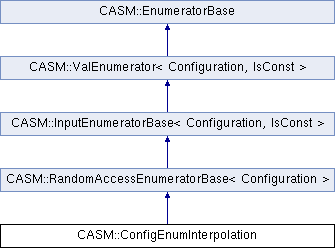

Inheritance diagram for CASM::ConfigEnumInterpolation:

Detailed Description

Interpolate displacements and strains between two configurations with identical occupation

Definition at line 18 of file ConfigEnumInterpolation.hh.

Public Types
typedef RandomAccessEnumIterator < Configuration, IsConst >	iterator

typedef std::reverse_iterator < iterator >	reverse_iterator

typedef step_type	size_type

typedef Configuration	value_type

typedef CASM_TMP::ConstSwitch < IsConst, Configuration > &	reference

typedef long	step_type

Public Member Functions
	ConfigEnumInterpolation (const value_type &_initial, const value_type &_final, Index _size)
	Constructor. More...

std::string	name () const override
	Derived enumerators must implement name, via ENUM_MEMBERS. More...

iterator	begin ()

iterator	end ()

reverse_iterator	rbegin ()

reverse_iterator	rend ()

size_type	size () const
	Number of elements in enumerator. More...

reference	front ()
	Reference to first element in enumerator. More...

reference	back ()
	Reference to last element in enumerator. More...

reference	initial ()
	Reference to first element in enumerator. More...

reference	final ()
	Reference to last element in enumerator. More...

reference	operator[] (size_type n)
	Reference an element in enumerator. More...

reference	current () const
	Access the current ObjectType by reference. More...

step_type	step () const
	Increments with each enumerated object. More...

bool	valid () const
	Returns false if enumeration is complete. More...

virtual jsonParser	source (step_type step) const

Static Public Member Functions
static int	run (PrimClex &primclex, const jsonParser &kwargs, const Completer::EnumOption &enum_opt)

Static Public Attributes
static const std::string	enumerator_name = "ConfigEnumInterpolation"

static const std::string	interface_help

Protected Member Functions
void	_set_size (size_type val)
	Set size value. More...

void	_initialize (value_type *_initial)

void	_initialize ()

void	_set_current_ptr (value_type *_new)
	Change the pointer. More...

value_type &	_current ()
	Access the current ObjectType by reference. More...

void	_set_step (step_type val)
	Set current step value. More...

void	_increment_step ()
	Increment current step value. More...

void	_decrement_step ()
	Decrement current step value. More...

void	_invalidate ()
	Call if enumeration complete. More...

void	_validate ()
	Used if random access enumerator step is moved into valid range. More...

Private Member Functions
Configuration *	at_step (step_type n) override
	Implements goto_step. More...

Private Attributes
Configuration	m_current

Configuration	m_initial

Configuration	m_final

value_type::displacement_matrix_t	m_displacement_inc

Eigen::Matrix3d	m_deformation_inc

Member Typedef Documentation

typedef RandomAccessEnumIterator<Configuration , IsConst> CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::iterator

inherited

Definition at line 287 of file RandomAccessEnumerator.hh.

typedef CASM_TMP::ConstSwitch<IsConst, Configuration >& CASM::ValEnumerator< Configuration , IsConst >::reference

inherited

Definition at line 192 of file Enumerator.hh.

typedef std::reverse_iterator<iterator> CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::reverse_iterator

inherited

Definition at line 288 of file RandomAccessEnumerator.hh.

typedef step_type CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::size_type

inherited

Definition at line 289 of file RandomAccessEnumerator.hh.

typedef long CASM::EnumeratorBase::step_type

inherited

Definition at line 103 of file Enumerator.hh.

typedef Configuration CASM::ValEnumerator< Configuration , IsConst >::value_type

inherited

Definition at line 191 of file Enumerator.hh.

Constructor & Destructor Documentation

CASM::ConfigEnumInterpolation::ConfigEnumInterpolation	(	const value_type &	_initial,
		const value_type &	_final,
		Index	_size
	)

Constructor.

Parameters

_initial,_final	Initial and final configurations to interpolate between
_size	The total number of configurations to enumerate, including the initial and final configurations

The final configuration is not pointed at by the end iterator, which points past-the-final element, as is typical
_size will be equal to
std::distance(this->begin(), this->end())

Definition at line 34 of file ConfigEnumInterpolation.cc.

Member Function Documentation

value_type& CASM::ValEnumerator< Configuration , IsConst >::_current ( )

inlineprotectedinherited

Access the current ObjectType by reference.

Definition at line 244 of file Enumerator.hh.

void CASM::EnumeratorBase::_decrement_step ( )

inlineprotectedinherited

Decrement current step value.

Definition at line 164 of file Enumerator.hh.

void CASM::EnumeratorBase::_increment_step ( )

inlineprotectedinherited

Increment current step value.

Definition at line 159 of file Enumerator.hh.

void CASM::EnumeratorBase::_initialize ( )

inlineprotectedinherited

Initialize

Sets step to 0
Sets valid to true

Definition at line 148 of file Enumerator.hh.

void CASM::ValEnumerator< Configuration , IsConst >::_initialize ( value_type * _initial )

inlineprotectedinherited

Initialize

Sets current to point at _initial
Sets step to 0
Sets valid to true

Definition at line 216 of file Enumerator.hh.

void CASM::EnumeratorBase::_invalidate ( )

inlineprotectedinherited

Call if enumeration complete.

Definition at line 169 of file Enumerator.hh.

void CASM::ValEnumerator< Configuration , IsConst >::_set_current_ptr ( value_type * _new )

inlineprotectedinherited

Change the pointer.

Definition at line 239 of file Enumerator.hh.

void CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::_set_size ( size_type val )

inlineprotectedinherited

Set size value.

Definition at line 365 of file RandomAccessEnumerator.hh.

void CASM::EnumeratorBase::_set_step ( step_type val )

inlineprotectedinherited

Set current step value.

Definition at line 154 of file Enumerator.hh.

void CASM::EnumeratorBase::_validate ( )

inlineprotectedinherited

Used if random access enumerator step is moved into valid range.

Definition at line 174 of file Enumerator.hh.

Configuration * CASM::ConfigEnumInterpolation::at_step ( step_type n )

overrideprivatevirtual

Implements goto_step.

Set m_current to correct value at specified step and return a reference to it.

Implements CASM::RandomAccessEnumeratorBase< Configuration >.

Definition at line 72 of file ConfigEnumInterpolation.cc.

reference CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::back ( )

inlineinherited

Reference to last element in enumerator.

Definition at line 333 of file RandomAccessEnumerator.hh.

iterator CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::begin ( )

inlineinherited

Definition at line 305 of file RandomAccessEnumerator.hh.

reference CASM::ValEnumerator< Configuration , IsConst >::current ( ) const

inlineinherited

Access the current ObjectType by reference.

Definition at line 232 of file Enumerator.hh.

iterator CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::end ( )

inlineinherited

Definition at line 309 of file RandomAccessEnumerator.hh.

reference CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::final ( )

inlineinherited

Reference to last element in enumerator.

Definition at line 344 of file RandomAccessEnumerator.hh.

reference CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::front ( )

inlineinherited

Reference to first element in enumerator.

Definition at line 327 of file RandomAccessEnumerator.hh.

reference CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::initial ( )

inlineinherited

Reference to first element in enumerator.

Definition at line 339 of file RandomAccessEnumerator.hh.

std::string CASM::ConfigEnumInterpolation::name ( ) const

inlineoverridevirtual

Derived enumerators must implement name, via ENUM_MEMBERS.

Implements CASM::EnumeratorBase.

Definition at line 26 of file ConfigEnumInterpolation.hh.

reference CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::operator[] ( size_type n )

inlineinherited

Reference an element in enumerator.

Definition at line 349 of file RandomAccessEnumerator.hh.

reverse_iterator CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::rbegin ( )

inlineinherited

Definition at line 313 of file RandomAccessEnumerator.hh.

reverse_iterator CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::rend ( )

inlineinherited

Definition at line 317 of file RandomAccessEnumerator.hh.

int CASM::ConfigEnumInterpolation::run	(	PrimClex &	primclex,
		const jsonParser &	kwargs,
		const Completer::EnumOption &	enum_opt
	)

static

Definition at line 18 of file ConfigEnumInterpolation.cc.

size_type CASM::RandomAccessEnumeratorBase< Configuration , IsConst >::size ( ) const

inlineinherited

Number of elements in enumerator.

Definition at line 322 of file RandomAccessEnumerator.hh.

virtual jsonParser CASM::EnumeratorBase::source ( step_type step ) const

inlinevirtualinherited

Default Object source just uses step#

Returns:

{
  "enumerated_by": "<enumerator_type>",
  "step": <step #>
}

Definition at line 131 of file Enumerator.hh.

step_type CASM::EnumeratorBase::step ( ) const

inlineinherited

Increments with each enumerated object.

Definition at line 113 of file Enumerator.hh.

bool CASM::EnumeratorBase::valid ( ) const

inlineinherited

Returns false if enumeration is complete.

Definition at line 118 of file Enumerator.hh.

Member Data Documentation

const std::string CASM::ConfigEnumInterpolation::enumerator_name = "ConfigEnumInterpolation"

static

Definition at line 30 of file ConfigEnumInterpolation.hh.

const std::string CASM::ConfigEnumInterpolation::interface_help

static

Initial value:

=
    "ConfigEnumInterpolation: \n\n"
    "  ... include help documentation here ... \n\n"

Definition at line 31 of file ConfigEnumInterpolation.hh.

Configuration CASM::ConfigEnumInterpolation::m_current

private

Definition at line 42 of file ConfigEnumInterpolation.hh.

Eigen::Matrix3d CASM::ConfigEnumInterpolation::m_deformation_inc

private

Definition at line 47 of file ConfigEnumInterpolation.hh.

value_type::displacement_matrix_t CASM::ConfigEnumInterpolation::m_displacement_inc

private

Definition at line 46 of file ConfigEnumInterpolation.hh.

Configuration CASM::ConfigEnumInterpolation::m_final

private

Definition at line 44 of file ConfigEnumInterpolation.hh.

Configuration CASM::ConfigEnumInterpolation::m_initial

private

Definition at line 43 of file ConfigEnumInterpolation.hh.

The documentation for this class was generated from the following files:

/Users/bpuchala/Work/codes/CASMcode_v0.2.X_reference/include/casm/clex/ConfigEnumInterpolation.hh
/Users/bpuchala/Work/codes/CASMcode_v0.2.X_reference/src/casm/clex/ConfigEnumInterpolation.cc
